Part Number: WT53030

Description: Wagner Tuning Mazda MX 5 NC Gen2 Digital Dash Display

Fitment: 06-15 Mazda Miata MX5 NC

Details:

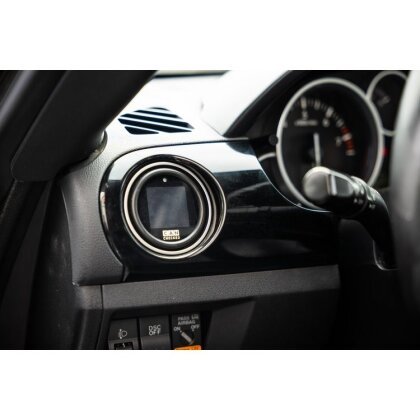

The MFD15 Gen2 is equipped with an OLED screen, which offers best readability even in direct sunlight. Due to the outer diameter of 52mm, the display is compatible with commercially available bezels for the interior, even without a vehicle-specific holder from us. The operation is done with the two, on the windshield mounted, push buttons or variable the optional rotary knob.



Key Features



Compact design: 52mm in diameter and only 12.5mm deep

Switching flash: The LED on the front of the display can be used as a switching flash and/or as a warning LED and can be configured freely

Can Bus: Support of Can Bus ECUs, OBD2 from 2008 and deep values for VW/Audi from 2008 or build your own Can Stream

WLAN: connect to your smartphone or PC and perform all further steps via our Web UI

Additional inputs: connect up to 6 analog sensors to the inputs or connect an ethanol sensor* directly to the display

Preset Alarms: predefined alarms can be easily activated and customized. For example, get a big alert when the exhaust gas temperature is above 900 degrees.

Customization: Use your own startup logo or background image to make it your MFD15 Gen2

Online logging*: Log your data with your smartphone or PC and save the log to your device for later analysis

Flex Fuel*: View ethanol content and temperature on your display

Can Switching*: Switch can switches using the buttons on your display and forward the readings from your analog inputs to the can bus



Different views


Choose up to eight pages of different views and customize your display to best suit you and your vehicle:




Analog pointer

Double value

Gear indicator

4-fold values

6-fold values

Bar + double display

Round display

Bar graph (double across)

Performance Meter

Bar chart (1-6-fold upright)

Single value
