Part Number: TS4-HDG6

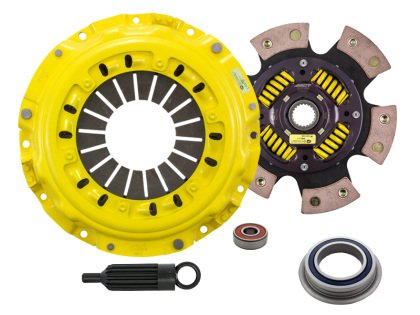

Description: ACT HD/Race Sprung 6 Pad Clutch Kit

Product Weight (lbs.): 20.2

Torque Capacity (ft/lbs.): 747

Torque Capacity Over OE: 89%

Pressure Plate Type: Heavy Duty

Clutch Disc Diameter: 250

Input Spline Quantity: 14

Input Shaft Diameter: 1.25

Disc Material: Ceramic

Part Fitment Requirement: Must be used with ACT flywheel for proper clearance (flywheel not included).

Pilot Bushing Included: No

Release Bearing Included: Yes

Grease Included: Yes

Pilot Bearing Included: Yes

Disc Type Sprung Solid: Sprung

Clutch Slave Cylinder Included: No

Clutch Master Cylinder Included: No

Grade Type: Performance

Pressure Plate Bolts Included: No

Flywheel Bolts Included: No

Fitment: 93-98 Toyota Supra Turbo 2JZGTE

Details:

TS4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
