Part Number: TS4-XTSS

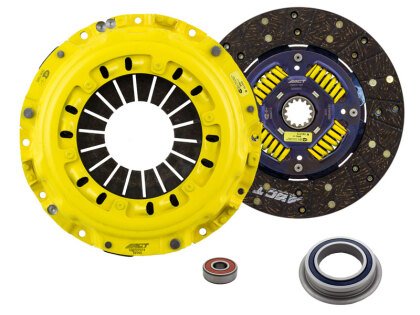

Description: ACT XT/Perf Street Sprung Clutch Kit

Product Weight (lbs.): 20.3

Torque Capacity (ft/lbs.): 642

Torque Capacity Over OE: 62%

Pressure Plate Type: Xtreme

Clutch Disc Diameter: 250

Input Spline Quantity: 14

Input Shaft Diameter: 1.25

Part Fitment Requirement: Must be used with ACT flywheel for proper clearance (flywheel not included).

Disc Material: Organic

Pilot Bushing Included: No

Release Bearing Included: Yes

Grease Included: Yes

Pilot Bearing Included: Yes

Disc Type Sprung Solid: Sprung

Clutch Slave Cylinder Included: No

Clutch Master Cylinder Included: No

Grade Type: Performance

Flywheel Bolts Included: No

Pressure Plate Bolts Included: No

Fitment: 93-98 Toyota Supra Turbo 2JZGTE

Details:

TS4-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
