Part Number: SB13-HDG6

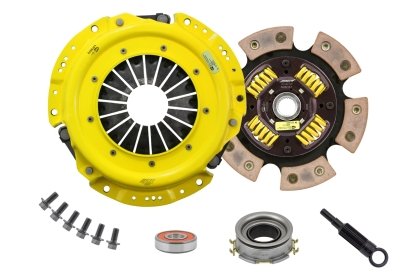

Description: ACT HD/Race Sprung 6 Pad Clutch Kit

Flywheel Type: Streetlite

Part Fitment Requirement: Pressure plate bolts included (M8-1.25 x 16mm).

Product Weight (lbs.): 15.6

Torque Capacity (ft/lbs.): 349

Torque Capacity Over OE: 104%

Flywheel Included: Yes

Pressure Plate Type: Heavy Duty

Release Bearing Included: Yes

Clutch Disc Diameter: 224

Disc Material: Ceramic

Input Spline Quantity: 24

Input Shaft Diameter: 1

Alignment Tool Included: Yes

Disc Type Sprung Solid: Sprung

Pressure Plate Bolts Included: No

Grease Included: Yes

Grade Type: Performance

Clutch Slave Cylinder Included: No

Flywheel Bolts Included: Yes

Clutch Master Cylinder Included: No

Fitment: 13-16 Scion FR-S / 13-20 Subaru BRZ / 17-20 Toyota 86

Details:

SB7-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
