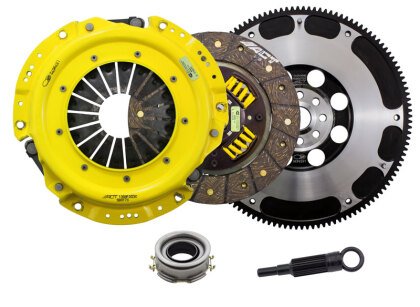

Part Number: SB7-XTSS

Description: ACT XT/Perf Street Sprung Clutch Kit

Product Weight (lbs.): 26.2

Torque Capacity (ft/lbs.): 351

Torque Capacity Over OE: 108%

Pressure Plate Type: Xtreme

Clutch Disc Diameter: 224

Input Spline Quantity: 24

Input Shaft Diameter: 1

Part Fitment Requirement: Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).

Disc Material: Organic

Flywheel Included: Yes

Release Bearing Included: Yes

Alignment Tool Included: Yes

Flywheel Type: Streetlite

Grease Included: Yes

Flywheel Bolts Included: Yes

Disc Type Sprung Solid: Sprung

Clutch Slave Cylinder Included: No

Clutch Master Cylinder Included: No

Grade Type: Performance

Pressure Plate Bolts Included: Yes

Fitment: 13-16 Scion FR-S / 13-20 Subaru BRZ / 17-20 Toyota 86

Details:

SB7-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
