Part Number: WT53010

Description: Wagner Tuning Gen2 Digital Dash Display

Fitment: 90-97 Mazda Miata NA

Details:

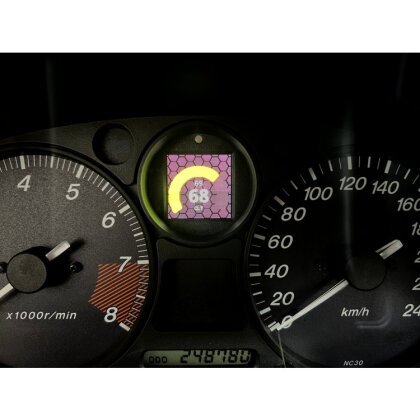

Our inspiration came from one of our customers who wanted to individually integrate an MFD15 into their Mazda MX5. The result: a special conversion kit that allows you to remove the original oil pressure gauge and install our state-of-the-art display - all without cutting! This is the Wagner Tuning Dsiplay Mazda MX5 NA Tachometer Conversion.

Key Features:

Plug and Play: Installation into the original dashboard, replacing the oil pressure gauge

Shift Light: The LED on the front of the display can be used as a shift light and/or warning LED and can be freely configured

Can Bus: Support for Can Bus control units or create your own Can Stream

WLAN: Connect to your smartphone or PC and perform all further steps via our web UI

Additional Inputs: Connect up to 6 analog sensors to the inputs or directly connect an ethanol sensor* to the display

Preset Alarms: Pre-configured warnings can be easily activated and customized. Get a big warning if the exhaust temperature exceeds 900 degrees, for example.

Customization: Use your own startup logo or background image to make it your MFD15 Gen2

Online Logging*: Log your data with your smartphone or PC and save the log for later analysis on your device

Flex Fuel*: Display ethanol content and temperature on your display

Can Switching*: Switch Can switches via the buttons on your display and route the measurements of your analog inputs to the Can Bus

Various Views:

Choose up to eight pages from various views and customize your display to suit you and your vehicle best:

Analog Needle

Double Value

Gear Display

4-value Display

6-value Display

Bar + Double Display

Circular Display

Bar Chart (double horizontal)

Performance Meter

Bar Chart (1-6-fold vertical)

Single Value
